The rockD Up-Lock carabiner utilizes a push-up and twist gate mechanism, allowing technicians to match gate styles to their existing equipment and gear configurations. The rockD is the carabiner of choice when seeking the highest strength in a standard-sized aluminum frame. The rockD carabiner serves the broadest range of specialized uses. The rockD in non-lanyard versions, features a flattened, i-beam profile at the bottom and top bends, giving the carabiner a sleek profile, while providing low weight and high strength characteristics.
- Narrow asymmetric 'D' shape optimizes MBS
- High strength-to-weight ratio in standard size carabiner
- Snag-resistant keylock nose design
- Large and ergonomic angled gate opening
- Machined frame ensures tight tolerances and smooth operation
Gate Mechanism
The 3-stage Up-Lock carabiner features a PUSH-UP and twist action.
We identified several surfaces where ropes and lanyards can be held up by the edges of the gate and sleeve, which can lead to dangerous cross-loading. The upLock gate sleeve is designed with beveled edges to minimize this risk and provide a smoother interior for interaction with the materials connected to the carabiner.
- Push-up and twist action
- Beveled edges provide smooth operating surfaces
- Large and ergonomic angled gate opening

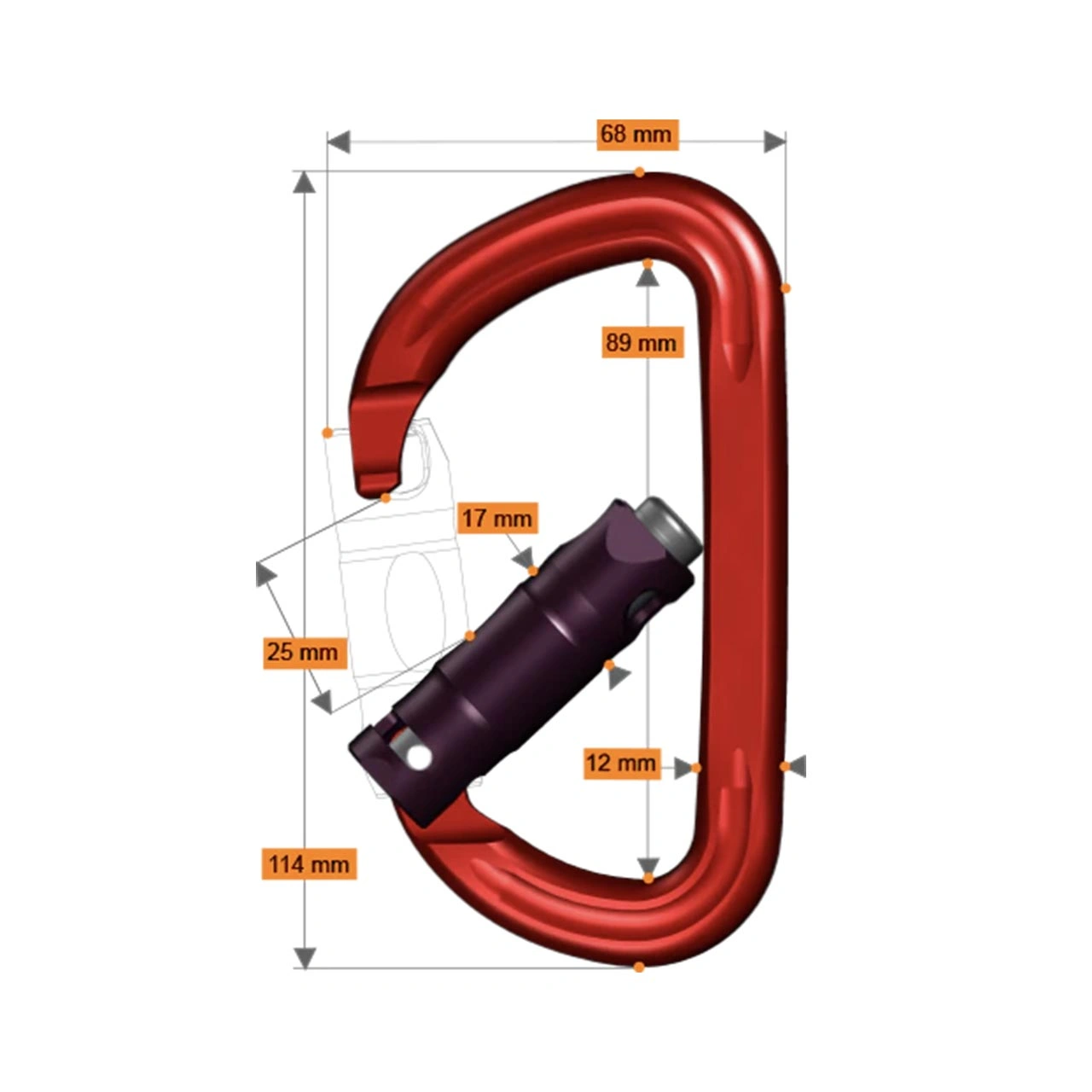

Specifications
- Gate: Auto-Lock
- Ref #: C2 A
- MBS-Major: 29 kN
- MBS-Minor: 11 kN
- MBS-Open: 9 kN
- Gate Opening: .95' (24 mm)
- Weight: 2.85 oz (80 gm)
- Height: 4.5' (114 mm)
- Width: 2.8' (71 mm)
- Certification: CE
